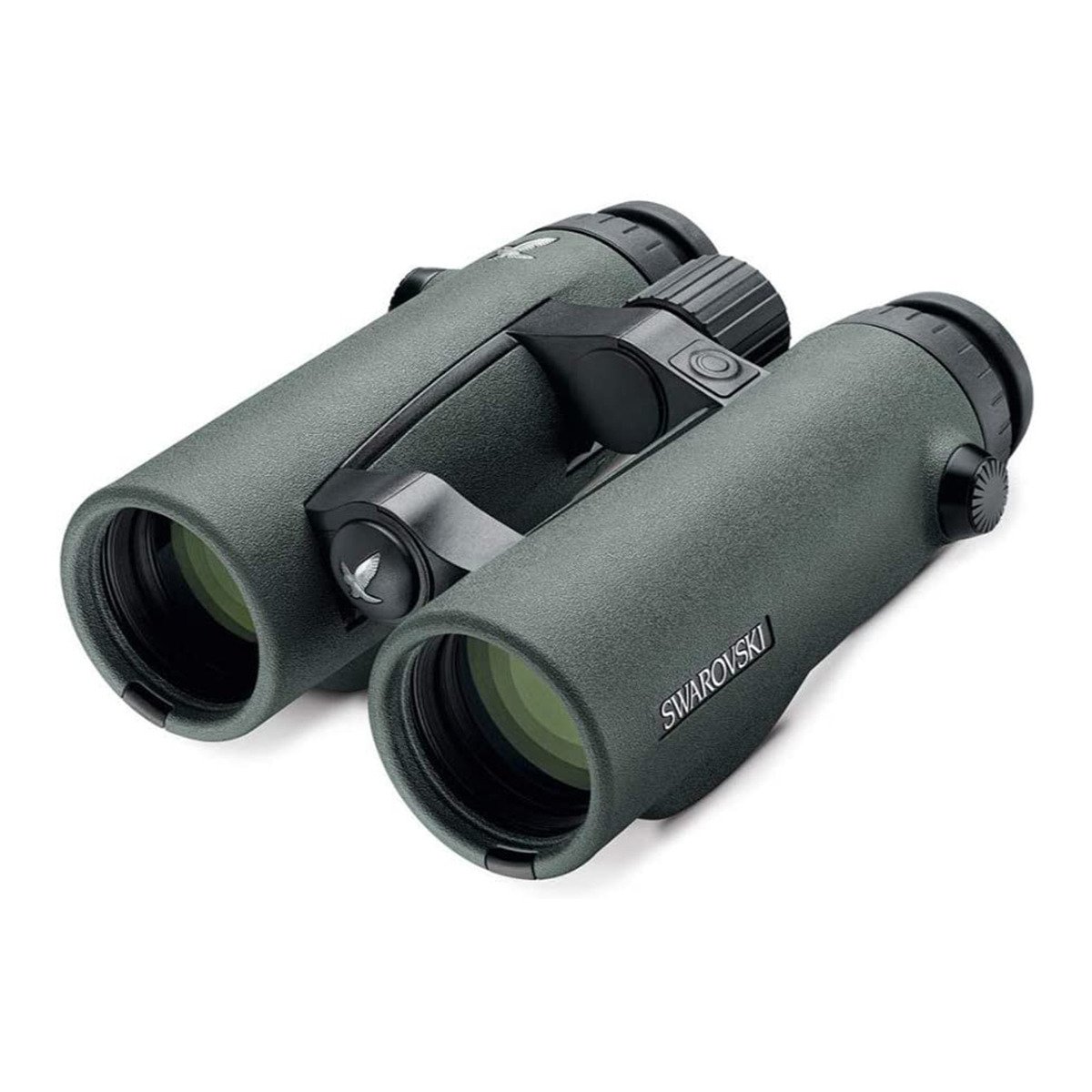

The EL RANGE is the latest demonstration of the innovativeness that lies at the heart of SWAROVSKI OPTIK. It combines SWAROVISION technology with precise range measurement. Spot game quickly and accurately thanks to the precision and edge-to-edge sharpness of SWAROVISION technology. The EL Range can be configured to suit your specific needs and you can transfer your own ballistics data, along with air pressure and temperature readings, allowing you to make an accurate assessment of every hunting situation. The innovative tracking assistant helps you to narrow down the area where your last shot hit the target. Uncompromising observation. The EL Range 10×42 shows precise details when viewing over long distances thanks to its 10x magnification.

OBJECTIVE

Magnification: 10x

Exit pupil diameter: 4.2 mm

Field of view m at 1000m / ft at 1,000yds: 359 ft/1000 yds

Field of view with eye glasses (°): 6.8 °

Shortest focusing distance: 16.4 ft

Light transmission: 90 %

Twilight factor acc. to DIN-58388: 20.5

Effective objective lens diameter: 42 mm

exit-pupil-distance-eye-relief-mm: 19 mm

Field of view degrees: 6.8 °

Field of view apparent: 61 °

Diopter adjustment: ± 5 dpt

Pupil distance: 2.2-2.9 in

SIZE & WEIGHT

Length in mm: 6.6 in.

Height in mm: 3.1 in.

Width in mm: 5.3 in.

Weight without batteries: 32.6 oz

ENVIRONMENT & CONDITIONS

functional-temperature-mechanically-electronically: -13 to +131 / +14 to +131 °F

MEASUREMENT

Measuring range in yds./ m: 10 – 2200 yd

Measuring time: ≤ 0.5 s

Laser: Class 1 EN/FDA

Life cycle: 2,000 measurements

Measuring accuracy in yds./ m: ± 1 yd

Angular measurement: ± 90 °

Units: Yard / Meter

DEGITAL

CR2 Battery
